Eco Solvent Printer
i3200 Eco Solvent Printer
XP600 ECO SOLVENT PRINTER
i3200 Eco Solvent Printer
- SUBLIMATION: 2 PASS: 40 m²/h
- ECO-SOLVENT: 4 PASS: 20 m²/h
- UV ROLL TO ROLL: 6 PASS: 15 m²/h
| Item | Value |
|---|---|
| Print Dimension | 1.8 m (72 inches) |
| Cartridge Capacity | Single ink cartridge capacity: 1500 ml |
| Platform Heating | Intelligent three-stage device with embedded microcomputer intelligent heating control system |
| Weight | 200 kg |
| Media | Flex Banner, Vinyl, One Way Vision, Banner Cloth, Window Film, Mesh, Eco-Solvent PP Paper, Eco-Solvent Photo Paper |
| Printing Speed | 2 Pass: 45 m²/h 4 Pass: 22 m²/h 6 Pass: 16 m²/h |
| Product Name | IMPRINT Digital Eco Solvent Printer |
| Print Head | i3200 |
| Ink | CMYK (4 Colors) |
| Drying Method | Equipped with infrared heating drying air system |
| RIP Software | Maintop (Standard) / PhotoPrint (Optional) |
Outdoor Series
Indoor Series
MACHINE DETAILS
Intelligent Control Panel
Leisal Motor
Intelligent Drying Control Panel
All Aluminium Suction Platform
Sprinkler Anti-collision Device
Industrial Paper Roller

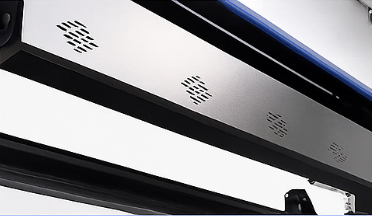

Intelligent Drying System
Delivery System
XP600 ECO SOLVENT PRINTER
FUNCTION & DISPLAY
Front
- Operation Panel
- HIWIN Mute Linear Guides
- Front and rear platform heating
- All Aluminum Body Structure
- External drying and fan
- Inductive Take-up
Behind
- Continuous Ink Supply Cartridges
- Press roller
- Damping paper feeder
- Waste ink cartridge
- Universal Wheel
| Product Name | ECO Solvent Roll to Roll Inkjet Printer | ||
|---|---|---|---|
| Print Head | DX5 / DX7 / XP600 / i3200 | Maximum Printing Width | 70cm / 130cm / 160cm / 180cm / 250cm / 320cm |
| Number of Printheads | 1 pc | RIP Software | Maintop, PhotoPrint |
| Printing Accuracy | 720 dpi / 1080 dpi / 1440 dpi | Color | CMYKW |
| Working Conditions | Relative Humidity: 40%–60% | Ink Supply System | Auto Ink Supply System |
| Environmental Conditions | Temperature: 16–30°C | Print Head Cleaning | Automatic |
| Print Interface | Network Port | Operating System | Windows XP / 7 / 10 |
| Voltage | AC 110–220V / 50–60Hz | Power | 500W |
| Machine Size / Weight | L2500 × W730 × H1260 mm / 162 kg | Package Size / Weight | L2560 × W750 × H650 mm / 178 kg |
| Heating Method | Front and back guide plate heating | ||
| Printing Ink | Eco-solvent ink, Water-based ink, Sublimation ink | ||
| Media Type | PP, Vinyl, Light Box Cloth, Flex, Canvas, Leather, Reflective Material, etc. | ||
HIGH PERFORMANCE BOARD
High-end board system with good stability and low failure rate.
CONTINUOUS CARTRIDGE SYSTEM
Constant ink level pressure, effectively preventing ink interruption during printing.
SERVO MOTOR
High-quality industrial servo motor drive system ensures accuracy and stability during printing.
PRINT ADSORPTION PLATFORM
The control area of the vacuum adsorption platform ensures printing stability efficiently.
ALUMINUM ALLOY INK STACK
Lifting aluminum alloy ink stack with intelligent automatic cleaning and printhead maintenance.
FRONT AND REAR HEATED CONTROL PANELS
Front and rear platform heating control panel, platform adsorption switch, and table lighting.
ALUMINUM ALLOY FRAME
Aluminum alloy thickened one-piece lifting trolley frame; the trolley can be lifted and lowered as a whole, making it convenient to use.
AUTOMATIC STACKER
Automatic take-up with adjustable resistance, thickened 5cm steel pipe, maximum load-bearing capacity of 70KG.
HIWIN GUIDE RAIL
Imported HIWIN silent linear guide rails are used to ensure high precision, stable operation of the equipment, and a longer service life.
INTEGRATED EXTERNAL FAN AND DRYER
The external dryer + fan are integrated. The drying temperature can be adjusted freely, and prints can be dried immediately.
EMERGENCY STOP SWITCH
Quick power-off in case of emergency.
PRESS PAPER
Elaborately designed extended paper pressing device presses the material to the maximum, prevents material arching, and better protects the printhead.
KEY PANEL
Easy-to-understand operation button panel with LCD display.
WASTE INK CARTRIDGE
Large-capacity waste ink box for easy recycling of waste ink.
1. Prepare ink and printing consumables.
2. Ready to design printing patterns or use patterns provided by customers.
3. Printing on the machine.
4. Finished product display.
