Dot Peen Machines
TMP4500E
TMP4750
TMP3200
TMM5400
TMP6100
TMP1000
TMP1700 Dot Peen Machine
TMP7000

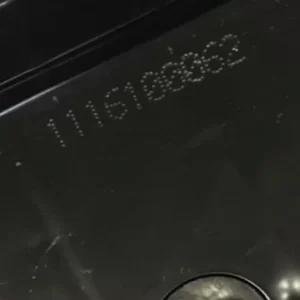

TMP4500E
The Telesis TMP4500E is a powerful, handheld marking system designed for portability and precision. Perfect for marking large, hard-to-reach parts, it delivers durable, clear marks even in rugged environments. With easy operation and reliable performance, the TMP4500E is the ideal solution for on-site industrial marking and equipment identification.
Works great for:
- Low air environments
- Deep marks
- Comfortable hold
| Specification | Details |
|---|---|
| Head Dimensions |
9.62″ H × 7.16″ W × 10.96″ D 244.22 mm × 181.78 mm × 278.45 mm |
| Marking Area |
1 in × 4 in 25 mm × 100 mm |
| Material Compatibility | Soft plastics to hardened steel (up to RC60) |
| Marking Depth |
0.001 in to 0.018 in (0.03 mm to 0.34 mm) |
| Connectivity | PLC, host computer interface |
| Controller(s) |
TMC470 (Fixed Button) Merlin III w/ PC |
FEATURES
- Ergonomic dual handle design
- Large 1” × 4” (25mm × 100mm) marking window.
- Extremely robust design featuring rugged X-Y platform and all metal enclosure.
- Powerful pin drive design for marking depths of up to 0.018” (0.46mm) in mild steel.
- Weighs less than 6.6 pounds (3.0kg) – less electronic cables
- Marks at speeds up to 3 characters-per-second.
- Self-contained, state-of-the-art TMC470 controller with USB, Ethernet, and 2 serial ports (see page 31).
- Automatically generates serial numbers, date, time, and shift codes
- Stores up to 400 marking patterns.
OPTIONAL ACCESSORIES
- Bar code scanner for automatic data entry.
- Quick disconnect toolposts for use in benchtop applications.
- Cable balancer attachment kit.
- V-block kit for marking cylindrical parts.
- Logo-Font Design software package for the design of custom fonts and logos.
- Battery operated carrying case mounted version.
TMP4750
The Telesis TMP4750 is a powerful, durable marking system designed for manufacturers who need reliable, deep marking on heavy-duty materials. Built for efficiency in demanding industrial environments, the TMP4750 ensures permanent, high-quality marks, making it ideal for applications that require rugged performance and minimal maintenance.
Works great for:
- VIN Marking
- Extra-Deep Marking
- Dark Spaces
| Specification | Details |
|---|---|
| Head Dimensions | 10.94″ H × 9.6″ W × 10.47″ D 277.9 mm × 244 mm × 265.9 mm |
| Marking Area | 1.5 in × 5.51 in 40 mm × 140 mm |
| Material Compatibility | Soft plastics to hardened steel (up to RC60) |
| Marking Depth | 0.001 – 0.018 in 0.03 – 0.34 mm |
| Connectivity | PLC, host computer interface |
| Controller(s) | Fixed Button (TMC470) Touch Screen (TMC520) Merlin III w/ PC |
Features
Rugged, Low-Maintenance X/Y Platform: Built to endure tough conditions with minimal upkeep.
Compact, Contaminant-Resistant Head: Perfect for production lines where reliability is critical.
Material Versatility: Marks a wide range of materials, including plastics and hardened steel up to RC60.
Easy Integration: Seamlessly interface with PLCs and host computers to streamline operations.
Interchangeable Marking Pin Sizes: Adjust marking depth between 0.001″ to 0.018″ (0.03 mm to 0.45 mm)
Floating Pin Technology: Handles surface irregularities for precise, consistent marking.
Automated Marking Functions: Automatically generate serial numbers, time, date, and shift codes.
Options & Accessories
- Marking Head Extension
- Cables
- Mounting Post
- System Computer
- Touch Screen Controller
- Various Marking Pins
TMP3200
The Telesis TMP3200 is a powerful, high-speed dot peen marking system designed for industrial applications that demand fast, deep, and permanent marks on a wide range of materials. With a large marking window and a rugged, durable design, the TMP3200 delivers precision and efficiency, making it ideal for high-volume production environments. Perfect for industries such as automotive, aerospace, and metal fabrication, the TMP3200 ensures reliable, high-quality marking for traceability, identification, and compliance.
Works great for:
- Fast Marking
- For Constrained Space
- Robust Construction
| Specification | Details |
|---|---|
| Head Dimensions |
11.32″ H × 10.32″ W × 6.59″ D 287 mm × 262 mm × 167 mm |
| Marking Area |
4 in × 6 in 100 mm × 150 mm |
| Material Compatibility | Soft plastics to hardened steel (up to RC60) |
| Marking Depth |
0.001 – 0.025 in 0.03 – 0.63 mm |
| Connectivity | PLC, host computer interface |
| Controller(s) |
TMC470 (Fixed Button) Merlin III w/ PC |
Features
- 4” × 6” (100mm × 150mm) marking window
- Belt-driven, dual rail X/Y mechanism with superior wear characteristics
- Patented floating pin technology accommodates surface irregularities of up to 0.25” (6mm)
- Marks a wide range of materials from soft plastics to hardened steel — up to Rc60
- Choice of pin sizes for marking depths from 0.001” – 0.018” (0.03 mm – 0.45 mm)
- Self-contained, state-of-the-art TMC470 controller features two serial ports, USB port, and Ethernet port (see page 31)
- Automatically generates serial numbers, date, time, and shift codes
- Stores up to 400 marking patterns
- Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers
- Dot density up to 200 dots-per-inch (79 dots-per-centimeter)
Optional Accessories
- Rotary fixtures for marking circumferences of cylindrical parts
- Marking head mounting post including programmable Z-axis version
- Panel-mount and IP/NEMA-Rated Controllers
- Logo/Font design software package for design of custom fonts or logos
- PC-Based Upgrade Utility available FREE from www.telesis.com for easy software upgrade
- Powerful Windows-based Merlin® III software available (see page 31)
TMM5400
The Telesis TMM5400, equipped with advanced multi-pin technology, is a high-speed, robust marking system built to meet the rigorous demands of the automotive and aerospace industries. Its multi-pin capability enables faster marking cycles and greater efficiency, producing clear, permanent marks on metals and other tough materials with ease. Ideal for high-volume production lines, the TMM5400 combines precision, durability, and versatility, ensuring dependable traceability and top-quality results with every mark.
| Specification | Details |
|---|---|
| Head Dimensions | 140 mm × 127 mm × 104 mm |
| Marking Area | 13 mm × 36 mm |
| Material Compatibility | Soft plastics to hardened steel (up to RC60) |
| Marking Depth |
0.001 – 0.018 in 0.03 – 0.34 mm |
| Connectivity | PLC, host computer interface |
| Controller(s) |
Fixed Button (TMC470) Merlin III w/ PC |
Features
- Marks up to 16 characters-per-second
- Marking windows as large as 0.5” × 3.78” (13mm × 96mm)
- Two marking pin cartridge configurations available to optimize marking window size/cycle time combinations
- Extremely compact marking head for easy integration into factory-automated applications
- Marks a wide range of materials from soft plastics to hardened steel — up to Rc60
- TELESIS’ patented “Floating Pin” technology accommodates surface irregularities up to 0.25” (6mm)
- Self-contained, state-of-the-art TMC470 controller features two serial ports, USB and Ethernet ports (see page 31)
- Automatically generates serial numbers, date, time, and shift codes
- Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers
- Stores up to 400 marking patterns
Optional Accessories
- Panel-mount and IP/NEMA-Rated controller options
- Logo/Font design software package for design of custom fonts or logos
- PC-Based Upgrade Utility available FREE from www.telesis.com for easy software upgrade
- PC-Based Pattern Back-up Utility available FREE from www.telesis.com
TMP6100
The Telesis PINSTAMP® TMP6100 is a robust dot peen marking solution, engineered for precise and efficient marking in industrial environments. With a robotic design, it offers unmatched accuracy, especially for cylindrical parts where a rotary device adds practicality. Built to endure tough manufacturing conditions, the TMP6100 integrates seamlessly into factory automation networks, making it versatile for diverse applications. Featuring an AutoSense motorized Z-axis for consistent pin stroke and critical standoff, the TMP6100 also offers electric models (TMP6100EAS) and a range of interchangeable marking pins for custom depths. Enhanced with options like rotary fixtures, panel-mount controllers, and easy software upgrades, the TMP6100 is the ideal choice for reliable, high-speed marking.
| Specification | Details |
|---|---|
| Marking Area |
12 in × 6 in 304 mm × 152 mm |
| Material Compatibility | Soft plastics to hardened steel (up to RC60) |
| Marking Depth |
0.001 – 0.018 in 0.03 – 0.34 mm |
| Connectivity | PLC, host computer interface |
| Controller(s) |
TMC470 (Fixed Button) Merlin III w/ PC |
| Available Models |
TMP6100 TMP6100EAS (electric version) |
Features
- Large 6” × 12” (152mm × 304mm) marking window
- Unique rigid positioning drive features robotic technology
- Marks a wide range of materials from soft plastics to hardened steel — up to Rc60
- Dot density up to 200 dots-per-inch (79 dots-per-centimeter)
- Choice of interchangeable marking pin types for depths from 0.001” – 0.018” (0.02mm – 0.45mm)
- Pin travel accommodates surface irregularities up to 0.25” (6mm)
- Compact, self-contained TMC470 controller with integral display and keyboard — no PC required (see page 31)
- RS232 or TCP/IP host interface to download text to individual fields or call up entire patterns
- Automatically generates serial numbers, time, date, and shift codes
- Easily interfaced to PLCs (Programmable Logic Controllers)
- Pattern backup via USB port
- Stores up to 400 marking patterns (files)
Options and Accessories
- Rotary fixtures for marking circumferences of cylindrical parts
- Marking head mounting posts, including programmable Z-axis version
- Logo/Font design software package for design of custom fonts or simple logos
- Powerful Windows-based Merlin® III software (see page 31)
- Electric pin version available

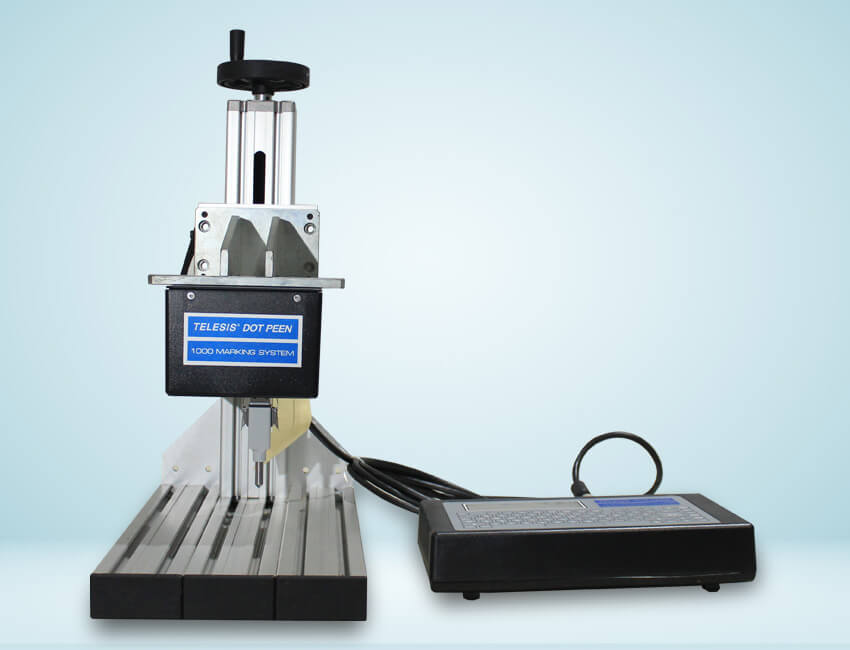

TMP1000
The TMP 1000/400 is the lowest cost PINSTAMP Marking System.The rugged TMP 1000 marking head features a compact window, and marking speeds up to six Characters per second. It”s an excellent choice for many factory automated or on line processes. The TMP 1000/400 includes the TMP 1000 Marking Head, but features our WIN 32 Merlin II Visual Design Software. Providing a state of the art graphical user interface.
Features
• Oil Resistant Fabric Boot
• Marking Head Extension Cables
• Foot Switch(Start Print) or Pushbutton Station(Start/Abort)
• Tool Post Assembly
• Auxiliary axis Driver Board Kit
• Motorized Z-Axis Tool Post with Programmable Travel
• Motorized Theta-axis with Programmable Roatry Driver Unit.
• 400 controller wall mounting Bracket kit
• 400 controller Panel-mounting Bezel/Bracket Kit
• 400 NEMA Enclosure
• Merlin II Visual Design Software
• System Computer (to run the Merlin II Software)
• 2D Code Capable Software
• Bar Code Scanner or Bar Code Wand with cable
• Backup Utility Software
• Upgrade Utility Software
• Logo/Front Generator Software
• Marks a wide range of materials from soft plastics to hardened steel-upto Rc60
• Shutter assembly protects marking head from solid and Liquid contaminants
• Dot density upto 200 dots per inch (79 per centimeter)
• Choice of interchangeable Marking Pin Types for depths from 0.001″ to 0.018″(0.03 mm to 0.45)
• Pin Travel accomodates surface irregularities to 6mm
• Automatically generates serial numbers,time,date,& shift codes.
• Easily interfaced to PLC”s (Programmable Logic Controllers) and Host Computers.
• Pin Materials:Carbide(10 MP-Series Micropin)Powdered metal or stainless steel with diamond tip or carbide(25L,25 XL Series).Powdered metal or tool steel with carbide tip (150S,150 SA-Series)
| Specification | Details |
|---|---|
| Weight | 2.9 kg |
| Operating Temperature | 32° to 122°F (0° to 50°C), non-condensing |
| Air Supply | Clean and dry, 4.2 to 8.3 bars |
| Air Consumption | 0.04 SCFM (idle), 0.6 SCFM (marking) |
| Marking Area | 50 × 20 mm |
| Pin Types | 10MP, 25L-, 25XL-, 150S, or 150SA-series |
| Pin Material |
Carbide (10MP-series MicroPin™) Powdered metal or stainless steel with diamond tip or carbide (25L-, 25XL-series) Powdered metal or tool steel with carbide tip (150S-, 150SA-series) |
TMP1700 Dot Peen Machine
The Telesis TMP1700 is a highly versatile and compact dot peen marking system designed for industrial environments that demand precise, reliable, and permanent marking solutions. Known for its robust performance, the TMP1700 excels in marking a variety of materials, from metals like steel and aluminum to plastics and other composites, making it a versatile tool across multiple industries such as automotive, aerospace, electronics, medical devices, and more.
This lightweight, space-saving system is engineered to seamlessly integrate into both manual and automated production lines, making it suitable for a wide range of manufacturing setups. Its compact size ensures that it can be easily installed in tight spaces without compromising on performance. Despite its small footprint, the TMP1700 is built for durability and longevity, ensuring it can withstand the demands of high-volume production environments.
The TMP1700 comes equipped with advanced software that offers users complete control over marking parameters, including character size, marking depth, speed, and orientation. This flexibility allows for highly customizable marking, ensuring every mark—from simple text and serial numbers to complex barcodes, QR codes, logos, and graphics—is clear, crisp, and permanent. Its precision-driven technology ensures consistent, high-quality results every time, even on uneven or curved surfaces.
| Specification | Details |
|---|---|
| Head Dimensions |
6.70″ H × 6.25″ W × 4.73″ D 170.2 mm × 158.7 mm × 120.3 mm |
| Marking Area |
1.5 in × 2.5 in 38 mm × 63 mm |
| Material Compatibility | Soft plastics to hardened steel (up to RC60) |
| Marking Depth |
0.001 – 0.018 in 0.03 – 0.34 mm |
| Connectivity | PLC, host computer interface |
| Controller(s) |
TMC470 (Fixed Button) TMC520 (Touch Screen) Merlin III w/ PC |
| Available Models |
TMP1700 TMP1700i |
Features
- 1-1/2” × 2-1/2” (38.1mm × 63.5mm) marking window
- Rugged, low-maintenance X/Y platform
- Compact Marking Head — approximately 6.6” × 6.2” × 4.7” (168mm × 158mm × 120mm)
- Marks a wide range of materials from soft plastics to hardened steel — up to Rc60
- Shutter assembly protects marking head from solid and liquid contaminants
- Self-contained, state-of-the-art TMC470 controller with two serial ports, USB port, and Ethernet port (see page 33), as well as TMC600 touchscreen-based controller (see page 32)
- Dot density up to 200 dots-per-inch (79 dots-per-centimeter)
- Choice of interchangeable marking pin types for depths from 0.001” – 0.018” (0.03mm – 0.45mm)
- Pin travel accommodates surface irregularities up to 0.25” (6mm)
- Automatically generates serial numbers, time, date, and shift codes
- Stores up to 400 marking patterns
- Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers
Options and Accessories
- Rotary fixtures for marking circumferences of cylindrical parts
- Marking head mounting post, including programmable Z-axis version (extruded aluminum version shown above picture)
- Panel-mount and IP/NEMA-Rated Controllers
- Logo/Font design software package for design of custom fonts or logos
- PC-Based Upgrade Utility available FREE from www.telesis.com for easy software upgrade
TMP7000
The TMP7000 Marking Head includes the mechanical motion components to position the marking pin at precise X/Y positions and the pneumatic components to drive the marking pin out from, and return the pin back into, the pin cartridge. The TMP7000 marking head is an X/Y-traversing mechanism. Using two stepper motor drives, it accurately and rapidly positions the pin at coordinate-defined locations in marking window within .001in. (.025 mm). The TMP7000 accommodates the rigorous and rapid positioning of the marking pin through a system of rigid rails and ball bearing saddles, timing belts, and direct-drive, toothed pulleys. The floating pin design permits high quality, consistent marks on irregular, slightly curved surfaces. It also accommodates applications where marking surfaces cannot be positioned at a consistent distance from the marker
Features
- Great for marking large characters and/or rough surfaces
- Large 4” × 6” (100mm × 150mm) marking window
- Marks up to 0.025” (0.63mm) deep in mild steel
- Self-contained, state-of-the-art TMC470 controller features two serial ports, USB and Ethernet ports
- Automatically generates serial numbers, date, time, and shift codes
- Marks a wide range of materials from soft plastics up to hardened steel
- Stores up to 400 marking patterns
Optional Accessories
- Panel-mount and IP/NEMA-Rated controller options
- Marking head support tooling and balancers
- Logo/Font design software package for design of custom fonts or logos
- PC-Based Upgrade Utility available FREE from www.telesis.com for easy software upgrade
- PC-Based Pattern Back-up Utility available FREE from www.telesis.com
